• Mechanical function

  Framework
  All industrial standard alternators are IP21(NEMA1), and IP 23 is also an option, but the rated power will be reduced by 5%.
  The Marine standard alternator is ip23. An air filter is an option, but the rated power of the alternator will be reduced by 5% while being installed.

  Axes and keys
  All alternator rotors should pass the balance test, and their vibration should be lower than the minimum value of BS6861 P.1 G. 2.5 Two-bearing alternators have a half-key test balance.

  Terminals and junction boxes
  The three alternators have 12 leads leading out of the terminals in the junction box. The terminal is placed on the non-drive end. The box is equipped with detachable panels.

  Engine adapters and couplings
  The SLG series alternators of the new era have two structures.
  The new era SLG series single bearings, engine adapters to SAE00, 0,1, 2,3, 4,5 and 6 coupling discs to SAE6.5, 7.5, 8, 10, 11.5, 14, 18,21 and 24 are available.
  The new era SLG series dual bearings, engine adapters up to SAE0, 1,2,3,4 and 5 are available.

  Voltage regulation
  Voltage regulation refers to the variation of voltage from no-load to full-load, the power factor from 0.8 to 1, and the fluctuation of 3% engine speed. The voltage is regulated by an AVR potentiometer.

  Electrical function

  Insulation class H
  All the regulating components are made of special materials and immersed in paint through special techniques. Vanish and colophony materials were developed to enhance the processing and mechanical strength of windings and rotating components, in order to protect alternators from operating in corrosive environments.

  Winding and electrical functions
  The 2/3 pulp winding design can effectively eliminate the third harmonic of the voltage (the 3rd, 9th, and 15th), which is the best design for UPS for nonlinear loads. Connected in parallel with the network, this structure can suppress excessive current on the neutral line. This and the 2/3 spacing are helpful for checking wave distortion and output voltage.

  Telephone interference and radio interference
  THF (defined by Part 40 of BS4999) <2%.TIF<50
  Brushless devices and quality AVR ensure that radio interference during transmission is minimal. RFI noise filters are also available.

  Manufacturing standard
  GB755, BS 5000, VDE 0530, NEMA MG1-22, iec34.

  Warranty period
  The alternator is warranted for 12 months from the date of notification of waiting for transportation. Or 1200 running time (whichever is shorter).

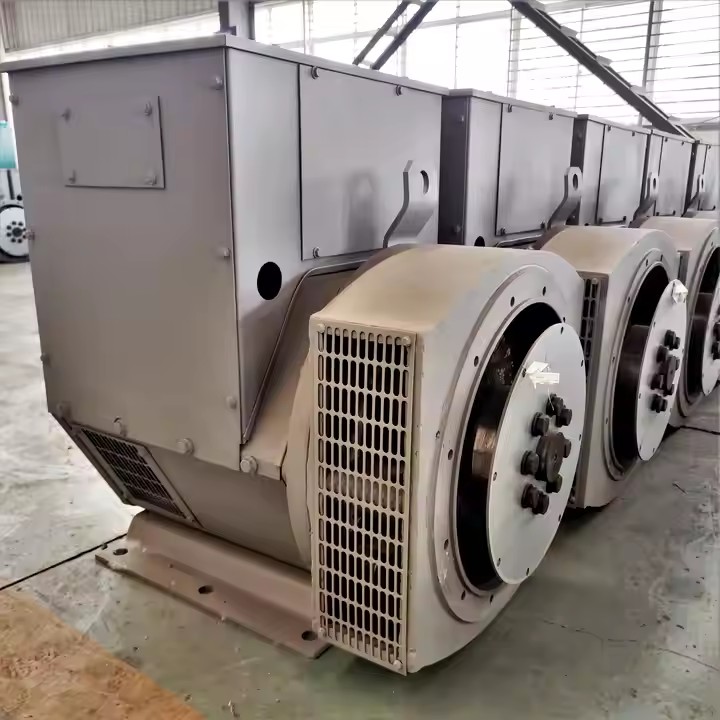

Product display





Generator power supply range

1. Engines: Renowned brands such as Cummins, Yuchai, Weichai, Perkins, and Chinese brands.

2. Alternator: Brand-new brushless alternator, single bearing, IP23, H insulation class.

3. Underframe: Heavy-duty steel trough underframe.

4. Radiator: Equipped with safety protection devices.

5. Shock absorber: The shock absorber between the engine, alternator and base.

6. Circuit breaker: 3-pole output manual circuit breaker.

7. Controller: Deepsea/Smartgen, an automatic controller with AMF functionality.

8. Muffler: Heavy-duty industrial muffler with flexible elbow.

9. Battery: High-capacity maintenance-free battery c/w battery cable.

10. Fuel tank: 8-hour base fuel tank or external fuel tank.

11. Tools and Manuals: Standard toolkits and complete operation and maintenance manuals for generators/engines/alternators/control panels, etc.

12. Warranty: One-year warranty or 1000-hour warranty

Check:

Each generator should be tested in the manufacturer’s workshop before shipment.

All relevant information and drawings related to the test and test procedures should be sent to the customer before the test date notice.

3. All accompanying documents correspond to the actual situation of the generator, including the certificate of conformity, parameters and performance indicators.

Guarantee:

1. Guarantee one year or 1,000 hours from the date of shipment from the ship (whichever comes first).

During the warranty period, our company will provide free vulnerable spare parts to address issues caused by production quality or material quality, except for those that can be damaged due to incorrect human operation by the customer. After the expiration, our company will provide cost spare parts for maintenance.

Our services:

1. Direct factory sales.

2. Quick response and available 24-hour online technical assistance.

3. For all the goods we produce ourselves, we offer one-stop services from design, printing to processing. Customers can provide design and sample production according to your requirements. We can also suggest how to produce products based on your target price.

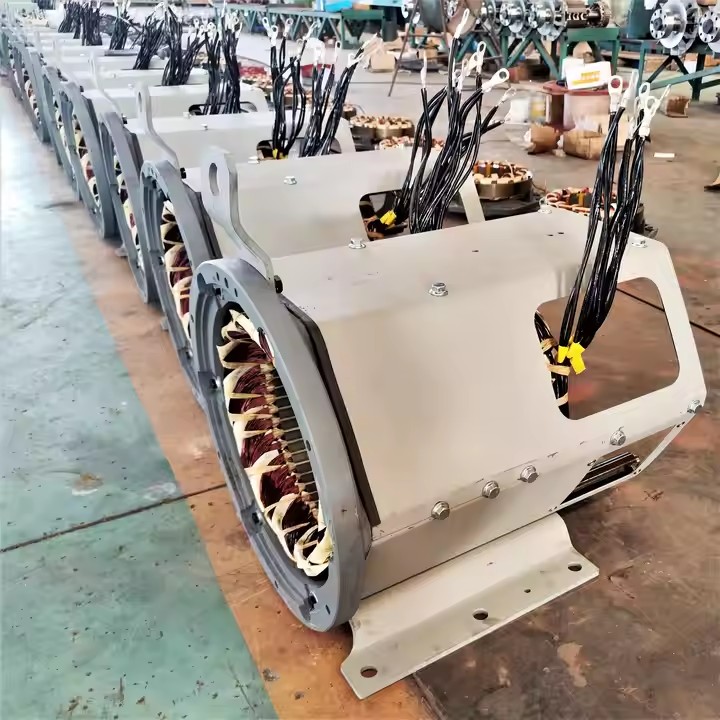

 Production workshop

Certificate

Packaging and logistics

Q&A

Who are we?

Our factory is located in Jiangsu, China, and we have distribution centers and regional offices in Beijing, Shanghai and other places. We have a good geographical location and high-quality resources. We export to 83 countries and our service outlets are spread all over the world.

2. How can we ensure quality?
Our products will undergo professional inspection before production and professional acceptance and quality inspection before loading.
3. What can you purchase from us?
We have container diesel generators, mobile trailer diesel generators, open diesel generators and silent diesel generators
4. Why do you want to purchase from us instead of from other suppliers?
Our company has 50 years of experience in design and development. The company holds 43 patents: 2 national patents, 6 software Copyrights and 40 utility model patents. In China, our diesel generator sets rank among the top ten brands in terms of sales. I believe your choice is correct!

5. What services can we provide?
Accepted delivery terms: FOB, CFR, CIF;
Accepted payment currencies: US dollar, euro, Chinese yuan;
Accepted payment methods: T/T, L/C, D/P D/A, MoneyGram, credit card, PayPal, Western Union, Cash, Escrow;
Oral English: English, Chinese
