• The top factory directly supplies the low-cost 30nm3hr energy savi 30kva diesel generator type for sale

The following are some basic parameters. If you want more, please feel free to contact us at any time!
Generator set
Generator set model 24GF
Power: 30kVA / 24kW
Frequency/speed: 50hz/1500RPM
Voltage: 400/230V
Power factor 0.8 (lag)
There is a line compared to the fourth stage
Overload capacity: 110%
Closed-circuit water-cooled fan for the cooling system
Start the system tem DC at 24V
Net weight 580 kilograms
General dimensions (length * width * height) : 1.5m * 0.64m * 1.0m

Yuchai engine
Engine model YC4V35Z-D20
Power: 33kW / 30kW
Number of cylinders: 4
Drilling * stroke 89*100
Displacement 2.5L
Compressed radio 17.5:1
The capacity of the lubricant is 6.5 liters
The fuel consumption is 8.52 L/H
Governor type machinery
Emission level TⅡ

Alternator
Alternator brands: Yingtai/Stamford/Marathon /Leroy-Somer/ENGGA
Frequency/speed: 50hz/1500RPM
Connect Y
The excitation system is self-excited
Protection level: IP23
Insulation degree H

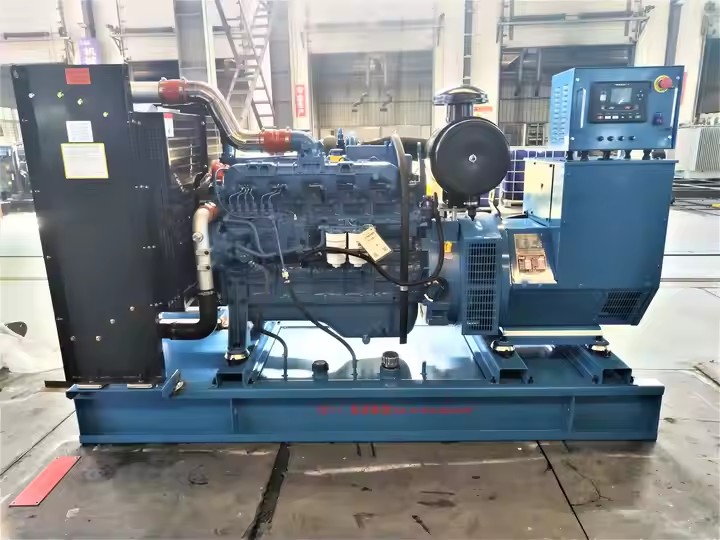

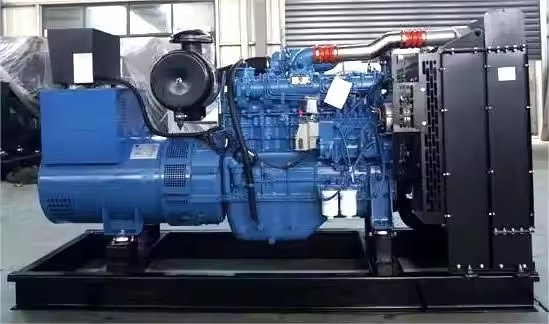

Product display





Generator power supply range

1. Engines: Renowned brands such as Cummins, Yuchai, Weichai, Perkins, and Chinese brands.

2. Alternator: Brand-new brushless alternator, single bearing, IP23, H insulation class.

3. Underframe: Heavy-duty steel trough underframe.

4. Radiator: Equipped with safety protection devices.

5. Shock absorber: The shock absorber between the engine, alternator and base.

6. Circuit breaker: 3-pole output manual circuit breaker.

7. Controller: Deepsea/Smartgen, an automatic controller with AMF functionality.

8. Muffler: Heavy-duty industrial muffler with flexible elbow.

9. Battery: High-capacity maintenance-free battery c/w battery cable.

10. Fuel tank: 8-hour base fuel tank or external fuel tank.

11. Tools and Manuals: Standard toolkits and complete operation and maintenance manuals for generators/engines/alternators/control panels, etc.

12. Warranty: One-year warranty or 1000-hour warranty

Check:

Each generator should be tested in the manufacturer’s workshop before shipment.

All relevant information and drawings related to the test and test procedures should be sent to the customer before the test date notice.

3. All accompanying documents correspond to the actual situation of the generator, including the certificate of conformity, parameters and performance indicators.

Guarantee:

1. Guarantee one year or 1,000 hours from the date of shipment from the ship (whichever comes first).

During the warranty period, our company will provide free vulnerable spare parts to address issues caused by production quality or material quality, except for those that can be damaged due to incorrect human operation by the customer. After the expiration, our company will provide cost spare parts for maintenance.

Our services:

1. Direct factory sales.

2. Quick response and available 24-hour online technical assistance.

3. For all the goods we produce ourselves, we offer one-stop services from design, printing to processing. Customers can provide design and sample production according to your requirements. We can also suggest how to produce products based on your target price.



 Production workshop

Certificate

Packaging and logistics

Q&A

Who are we?

Our factory is located in Jiangsu, China, and we have distribution centers and regional offices in Beijing, Shanghai and other places. We have a good geographical location and high-quality resources. We export to 83 countries and our service outlets are spread all over the world.

2. How can we ensure quality?
Our products will undergo professional inspection before production and professional acceptance and quality inspection before loading.
3. What can you purchase from us?
We have container diesel generators, mobile trailer diesel generators, open diesel generators and silent diesel generators
4. Why do you want to purchase from us instead of from other suppliers?
Our company has 50 years of experience in design and development. The company holds 43 patents: 2 national patents, 6 software Copyrights and 40 utility model patents. In China, our diesel generator sets rank among the top ten brands in terms of sales. I believe your choice is correct!

5. What services can we provide?
Accepted delivery terms: FOB, CFR, CIF;
Accepted payment currencies: US dollar, euro, Chinese yuan;
Accepted payment methods: T/T, L/C, D/P D/A, MoneyGram, credit card, PayPal, Western Union, Cash, Escrow;
Oral English: English, Chinese
